Continuous improvement drives productivity and cost analysis, to provide the best results for customers. Dedicated, modern horizontal machining centers, vertical machining centers, CNC lathe, and centerless grinding capabilities are notable in our geographic area. Machining experience with special materials is a core competency, including Aluminum, Titanium, Inconel, Lexan...
the form below and send or fax it to us at:
D.L. Martin Co.
25 D.L. Martin Dr.
Mercersburg, PA 17235
717-328-2141

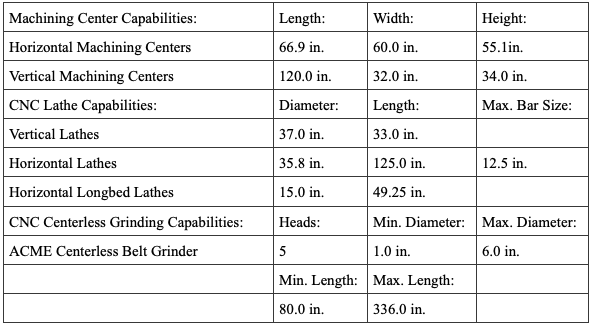

General machining capabilities:
To request a quote, please print
the form below and send or fax it to us at:
D.L. Martin Co.
25 D.L. Martin Dr.
Mercersburg, PA 17235
717-328-2141
Fax: (717) 328-5919
D.L. Martin Co. Machines Gallery
Cleaning & Packing Equip
Model: CB400E Type: Automatic with Conveyer
Model: OR-10V Type: Vibratory Capacity: 12'' x 12'' part, 2500lb.
Model: Series 2000 Type: Automatic Deslagger Capacity: 6'' Thick Maximum, 30'' Wide Maximum, 8'' Long Maximum
Better Engineering Washer
Horizontal Machining Center
Horizontal CNC Machining
CNC Horizontal Mach Ctr
Control: Mazatrol 640 Travel: X: 22.05'', Y: 24.8'', Z: 23.62'', 4th: .001 Degree Index Pallet: Dual Tool Storage: 40 Through Spindle Coolant: Yes Taper Size: 40 Probing Capabilities: Yes
Control: Mazatrol 640 Travel: X: 28.0'', Y: 24.0'', Z: 26.0'' Pallet: Dual Tool Storage: 80 Through Spindle Coolant: Yes Taper Size: 40 Probing Capabilities: Yes
Control: Fanuc Travel: X: 39.4'', Y: 41.3'', Z: 36.0'' Pallet: Dual Tool Storage: 60 Through Spindle Coolant: No Taper Size: 50 Probing Capabilities: Yes
Control: Mazatrol 640 Travel: X: 51.0'', Y: 43.3'', Z: 39.0'' Pallet: Dual Tool Storage: 120 Through Spindle Coolant: Yes Taper Size: 50 Probing Capabilities: Yes
Control: Mazatrol Matrix Travel: X:66.93", Y: 66.12",Z: 60.04" Pallet: Dual Tool Storage: 80 Taper Size: 90 Probing Capabilities: Yes

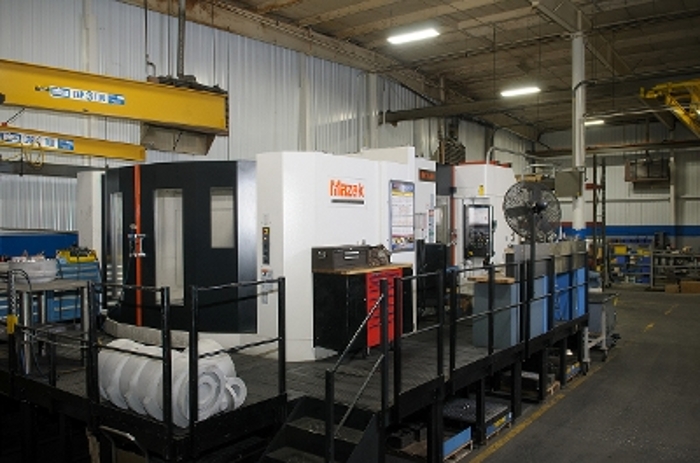

Mazak HCN10800 Matrix Control
Control: Mazatrol Nexus Travel: X:28.74", Y: 28.74",Z: 31.5" Pallet: Dual Tool Storage: 40 Taper Size: 40 Probing Capabilities: Yes

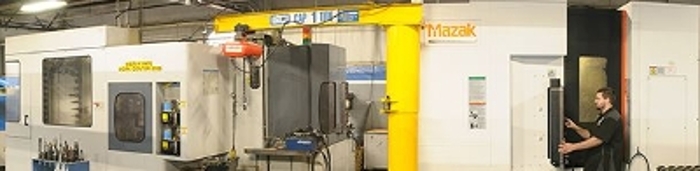

Mazak HCN5000 Nexus Control
CNC Lathes
Control: Mazatrol T32-2 Max Swing Over Bed: 39.0'' Max Turn Diameter: 12.2'' Max Turn Length: 37.4'' Tool Storage: 12 Low Chuck Preassure: Yes Chuck Size: 10.0'' Max Bar Size: N/A
Control: Mazatrol 640T Max Swing Over Bed: 49.25'' Max Turn Diameter: 15.0'' Max Turn Length: 48.0'' Tool Storage: 12 Low Chuck Pressure: Yes Chuck Size: 10.0'' Max Bar Size: N/A
Control: Mazatrol 640T Max Swing Over Bed: 25.9'' Max Turn Diameter: 15.4'' Max Turn Length: 23.0'' Tool Storage: 24 Low Chuck Pressure: No Chuck Size: 15.0'' Max Bar Size: N/A
Control: Mazatrol 640T Max Swing Over Bed: 23.6'' Max Turn Diameter: 16.1'' Max Turn Length: 22.8'' Tool Storage: 16 Low Chuck Pressure: Yes Chuck Size: 10.0'' Max Bar Size: N/A
Control: Mazatrol 640T Max Swing Over Bed: 23.6'' Max Turn Diameter: 15.7'' Max Turn Length: 19.7'' Tool Storage: 12 Low Chuck Pressure: No Chuck Size: 8.0'' Max Bar Size: N/A
Control: Mazatrol T32-2 Max Swing Over Bed: 17.32'' Max Turn Diameter: 10.0'' Max Turn Length: 19.7'' Tool Storage: 16 Low Chuck Pressure: N/A Chuck Size: 8'' Max Bar Size: 2.75''
Control: Mazatrol T32-2 Max Swing Over Bed: 17.32'' Max Turn Diameter: 10.0'' Max Turn Length: 19.7'' Tool Storage: 8 Low Chuck Pressure: N/A Chuck Size: 8'' Max Bar Size: 2.625''
Control: Mazatrol T32-6 Transferring Capabilities: Yes Max Swing Over Bed: 12.0'' Max Turn Diameter: 12.0'' Max Turn Length: 12.0'' Tool Storage: Dual Chuck w/12 stations each Low Chuck Pressure: Yes Chuck Size: Dual 8'' Max Bar Size: N/A
Control: Mazatrol T+ Max Swing Over Bed: 25.0'' Max Turn Diameter: 11.25'' Max Turn Length: 18.0'' Tool Storage: 8 Low Chuck Pressure: No Chuck Size: 8'' Max Bar Size: N/A
Control: Fanuc Max Swing Over Bed: 24.5'' Max Turn Diameter: 22.5'' Max Turn Length: 24.5'' Tool Storage: 12 Low Chuck Pressure: No Chuck Size: 24.0'' Max Bar Size: 6.5''
Control: Fanuc Max Swing Over Bed: 33.0'' Max Turn Diameter: 37.0'' Max Turn Length: 33.0'' Tool Storage: 12 Low Chuck Pressure: No Chuck Size: 36.0'' Max Bar Size: N/A
Control: Mazatrol Smart Control Max Swing Over Bed:26" Max Turn Diameter:16" Max Turn Length: 19" Tool Storage:12 Low Chuck Pressure: Chuck Size:10" Max Bar Size:3"

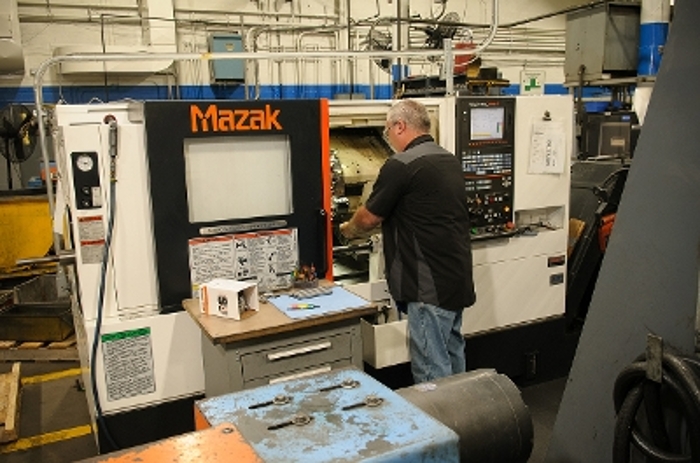

Mazak QT250 Smart Control
Control: Mazatrol Matrix Max Swing Over Bed:40.94" Max Turn Diameter: 36.83" Max Turn Length: 75" Tool Storage: 12 Chuck Size: 21"
Mazak STN550 Matrix Control
Control: MazatrolFusion Max Swing Over Bed: 20.8" Max Turn Diameter: 12.5" Max Turn Length: 39" Tool Storage:8 Chuck Size: 12"
Mazak QT30 Fusion Control
Control: Mazatrol Matrix Max Swing Over Bed: 33.07" Max Turn Diameter: 23" Max Turn Length: 40" Tool Storage: 12 Chuck Size: 18" Max Bar Size: 7.2"
Mazak QT450 Matrix Control
CNC Vertical Mach Ctr
Control: Fanuc Travel: X: 25.0'', Y: 15.0'', Z: 11.5'' Tool Storage: 14 Through Spindle Coolant: No Taper Size: 30 Probing Capabilities: No
Control: Haas Travel: X: 50.0'', Y: 20.0'', Z: 19.0'' Tool Storage: 20 Through Spindle Coolant: (1) Yes (1) No Taper Size: 40 Probing Capabilities: No
Control: Haas Travel: X: 40.0'' With Shuttle Pallets, Y: 18.0'', Z: 19.0'' Pallet: Dual Shuttle Pallets Tool Storage: 20 Through Spindle Coolant: Yes Taper Size: 40 Probing Capabilities: No
Control: Mazatrol Travel: X: 59.0'', Y: 25.26'', Z: 25.5'' Tool Storage: 30 Through Spindle Coolant: Yes Taper Size: 50 Probing Capabilities: Yes
Control: Mazatrol Matrix Travel: X:41.34", Y: 20.08",Z: 20.08" Tool Storage: 30 Taper Size: 40 Probing Capabilities: Yes
Mazak 510C Matrix Control
CNC Vertical Machining Center
Fabrication Equipment
Type: Hi-Definition Plasma Capacity: Length: 288.0'', Width: 72.0'', Thickness: 1.25''
Style: Manual Conveyer
Fiber Optic Liftmaster Loader Thickness: up to 25mm X Axis: 3000mm Y Axis: 1500mm Z Axis: 115mm

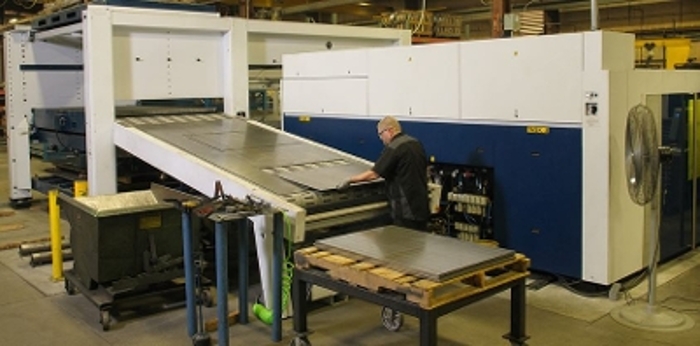

Trumpf TruLaser 3030
CO2 Laser Liftmaster Loader Thickness: up to 50mm X Axis: 3000 mm Y Axis: 1500 mm Z Axis: 115 mm
Trumpf TruLaser 5030
Trinco Blaster
Clepco Oven
C02 Laser Thickness: up to 25mm X Axis: 3000mm Y Axis: 1500mm Z Axis: 115mm
Trumpf TruFlow 3030
CO2 3000 watt X Axis: 4000mm Y Axis: 2000mm Z Axis: 115mm
Trumpf Laser 4030
Fiber Optic 6000 watt Thickness: up to 25mm X Axis: 3000mm Y Axis: 1500mm Z Axis: 115mm
Trumpf 3040 Fiber Laser
Grinders
Type: Center less Model: 1212-A Specifications: Diameter: 3''-12'', Length: 7'-36'
Type: Surface Specifications: Table: 8.0'' x 24''
Type: Horizontal Hone Specifications: Diameter: 4.0''-12.0'' I.D., Length: Up to 4.0'
Type: Horizontal Hone
Type: Cyl. Grinder Model: 1R
Type: Center less Belt Model: 5 Head Specifications: Diameter: 1.00'' x 6.00'', Length: 80'' to 28.0'
Manual Drills
Number Of Spindles: Multi
Number of Stations: 6
Number of Spindles: 1
Number of Stations: 1
Number of Spindles: 1
Number Of Stations: 6
Powermatic Four Spindle Drill
(2) Slide and Tap Air Drills
Manual Engine Lathes
Max Turn Diameter: 26.0'' Max Turn Length: 12.0' Chuck Size: 13.0'' Taper Attachment: Yes
Manual Milling and Boring Machine
Excello Boring Mill
(2) Victor Verical Mill
MSC Mill
Victualic Groove Roller
Presses
Type: Brake Press Specifications: Tonnage: 230
Tonnage: 132 tons Bending Length: 122"
Trumpf 3120 Press Brake
DLM Press
Diamond Press
Kenlee 100 Ton Press
Tonnage: 350
Trumpf V320 Press Brake
Tonnage: 187
Trumpf V170 Press Brake
Trumpf 85 Ton Press Brake
Cincinnati 350 Ton Press Brake
Radial Drills
Max Turn Diameter: 17.0'' Max Turn Length: 9.0'' Chuck Size: 10.0'' Taper Attachment: Yes
Bergonzi Radial Drill
Fosdick Radial Drill
Saws
Hem H105LA Horizontal Saw
Hem H130HA-DC-C Horizontal Saw
Type: Vertical Saw Specifications: Diameter: 15.0"
Broaching Equipment
Length: 4.0'
Inspection Equipment
Model: 1808-MEA Work Table: 26.5'' x 54.0'' Max Work Load: 1100lbs. Measuring Range: X Axis: 39.5'', Y Axis: 24.6'', Z Axis: 19.7'' Repeatability: .00016 Inches Accuracy: Linear: .00024 Inches, Volumetric: .00063 Inches Readout Resolution: .0001 Inches
Climate Controlled, Fully Programmable, and Manually Operated
Model: RCS 2828-18 Work Table: 37.5'' x 54'' Max Work Load: 900lbs. Measuring Range: X Axis: 28.0'', Y Axis: 28.0'', Z Axis: 18.0'' Repeatability: .0002 Inches Accuracy: Linear: .0002 Inches, Volumetric: .00063 Inches Readout Resolution: .0001 Inches
Climate Controlled, Fully Programmable, and Manually Operated
Hines Balancer
Faro Arm
Mitutoyo Optical Comparator
Fowler Horizontal Gage Setter
Hydraulic Test Stand
Welding
Genesis System Robotic Welder
(3) Lincoln Dealarc Welders
Centerline Dual System Spotwelder
Machining
